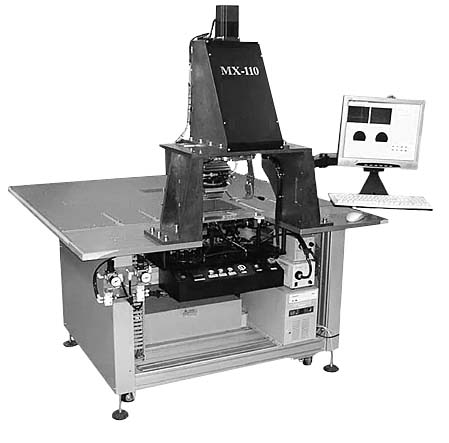

MX-110 Multi-Function LCD Rework Station

110The Large Panel Rework Station handles up to 47"(Diagonal) LCD. Ease of use and ability to rework COG (Chip on Glass), TAB attach and ACF pre-attach.

No complicated vision setup and training required to use the rework station. Vision engine show life image of IC/TAB with read out of alignment position for accurate placement onto superimposed ITO on the LCD panel. Placement adjustment of 0.5um in X and Y is done with super precision Nano-micrometer.

Programmable temperature controller for flexible process control and individual pressure setting for pre-attach and final bond. User friendly window base GUI.

Features

• Industrial PC with Windows 2000 OS
• 17"LCD User Interface screen
• Precision Optical Systems
• Quartz bonding surface
• Self generation vacuum
• Air cushion Work Table
• Motorize Rotary bond head
• Options for Extension Table
• Safety Interlock to prevent damage
• Quick change heater block design
• High bonding stability
